• 100% brand new items, never used or installed.

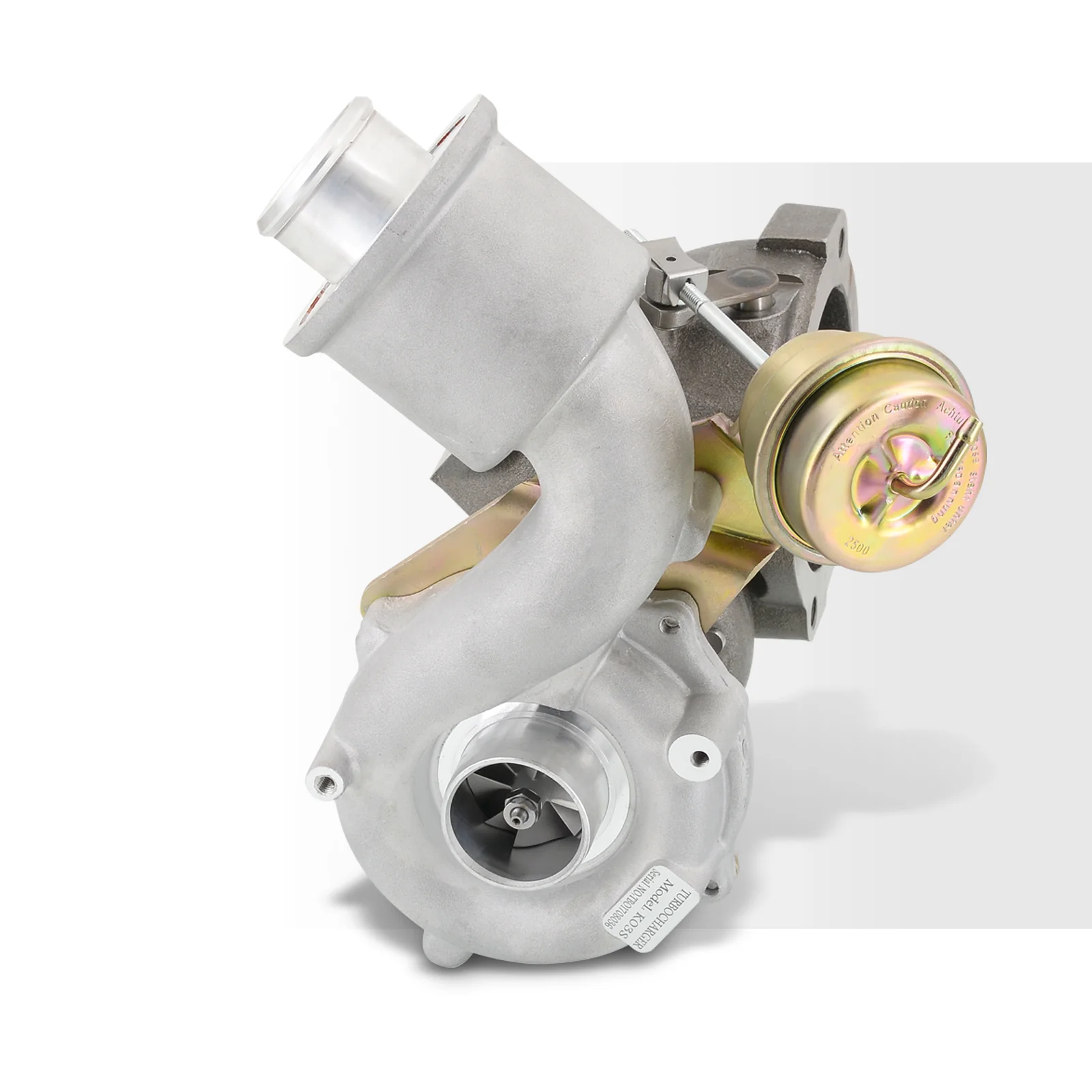

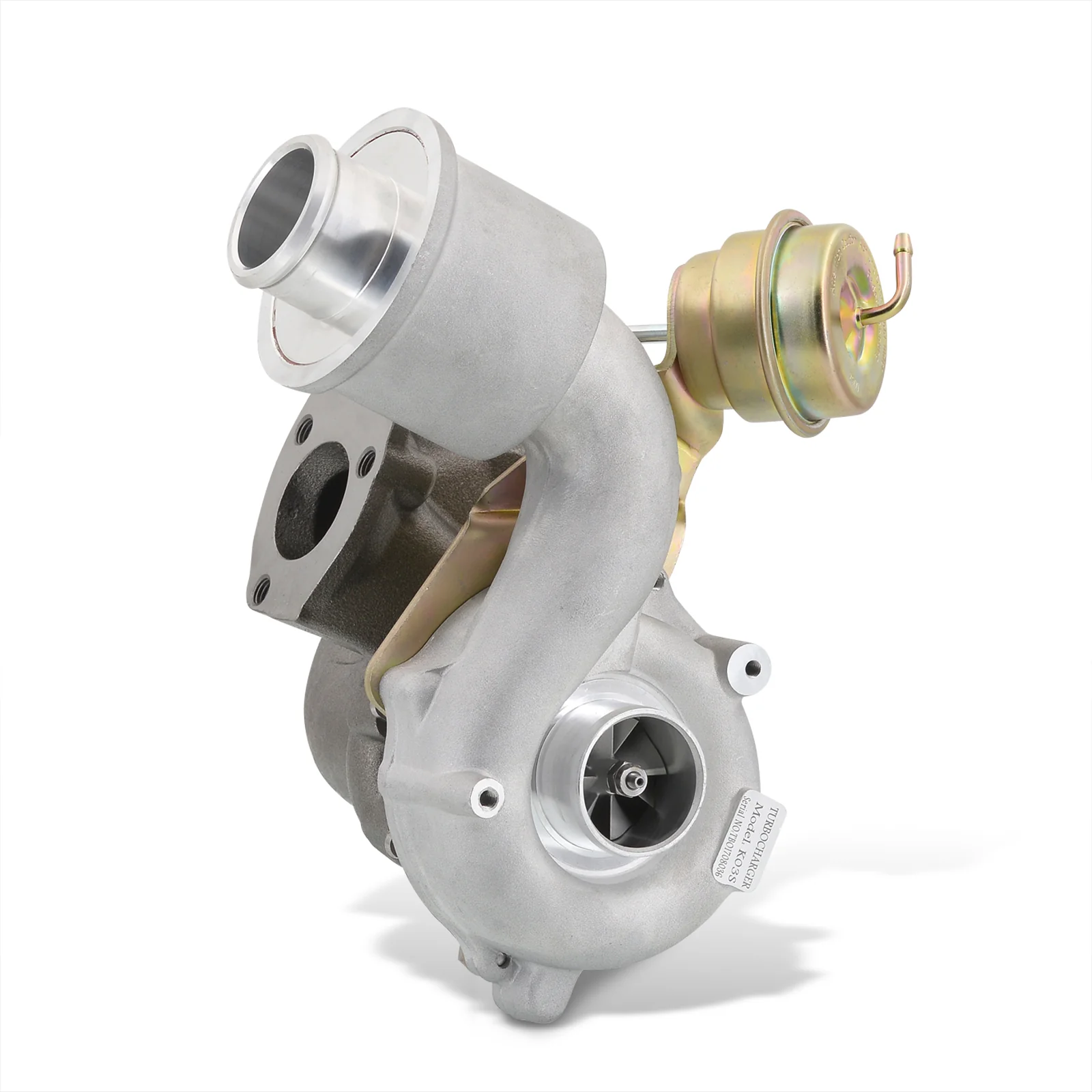

• K03-S turbocharger + internal wastegate.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.

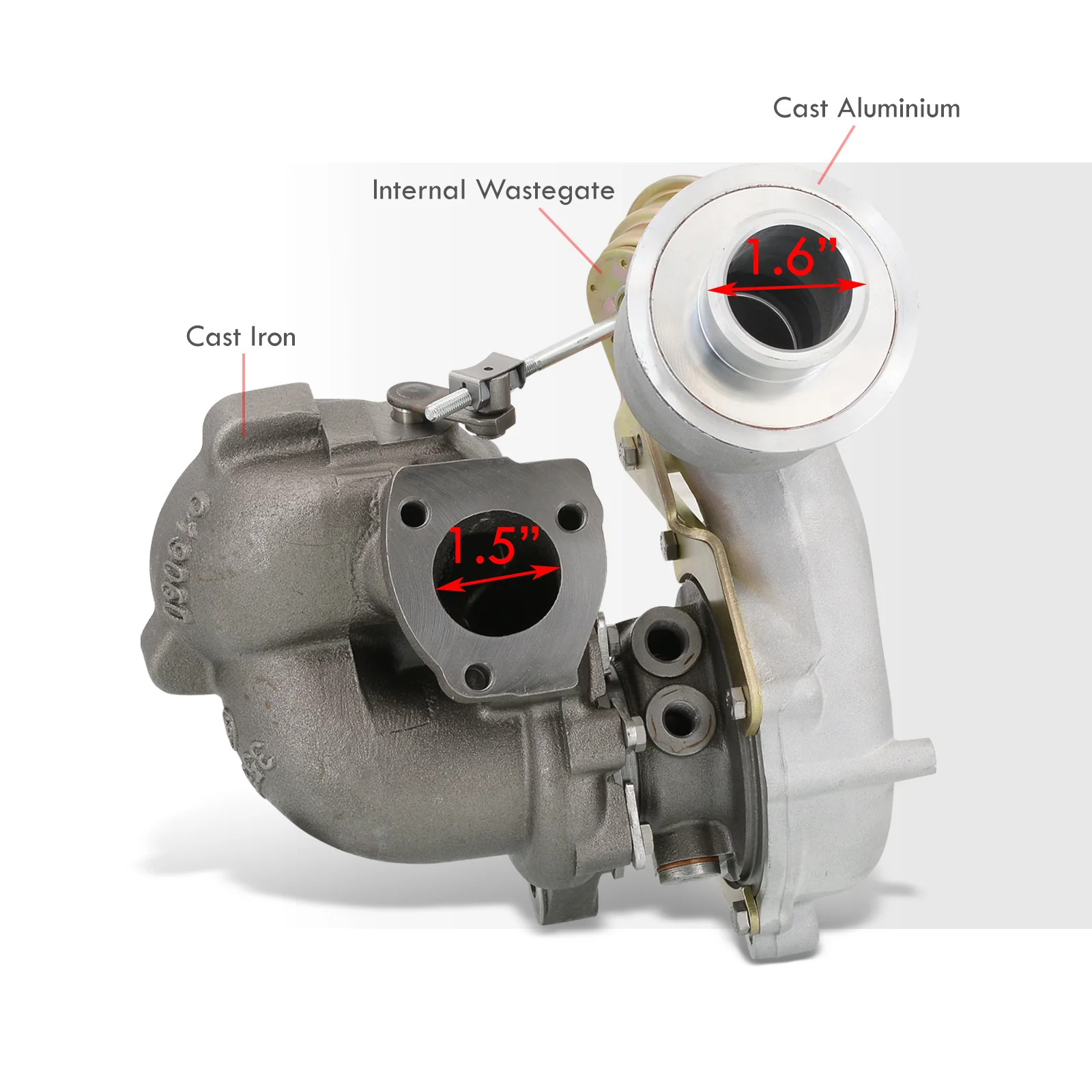

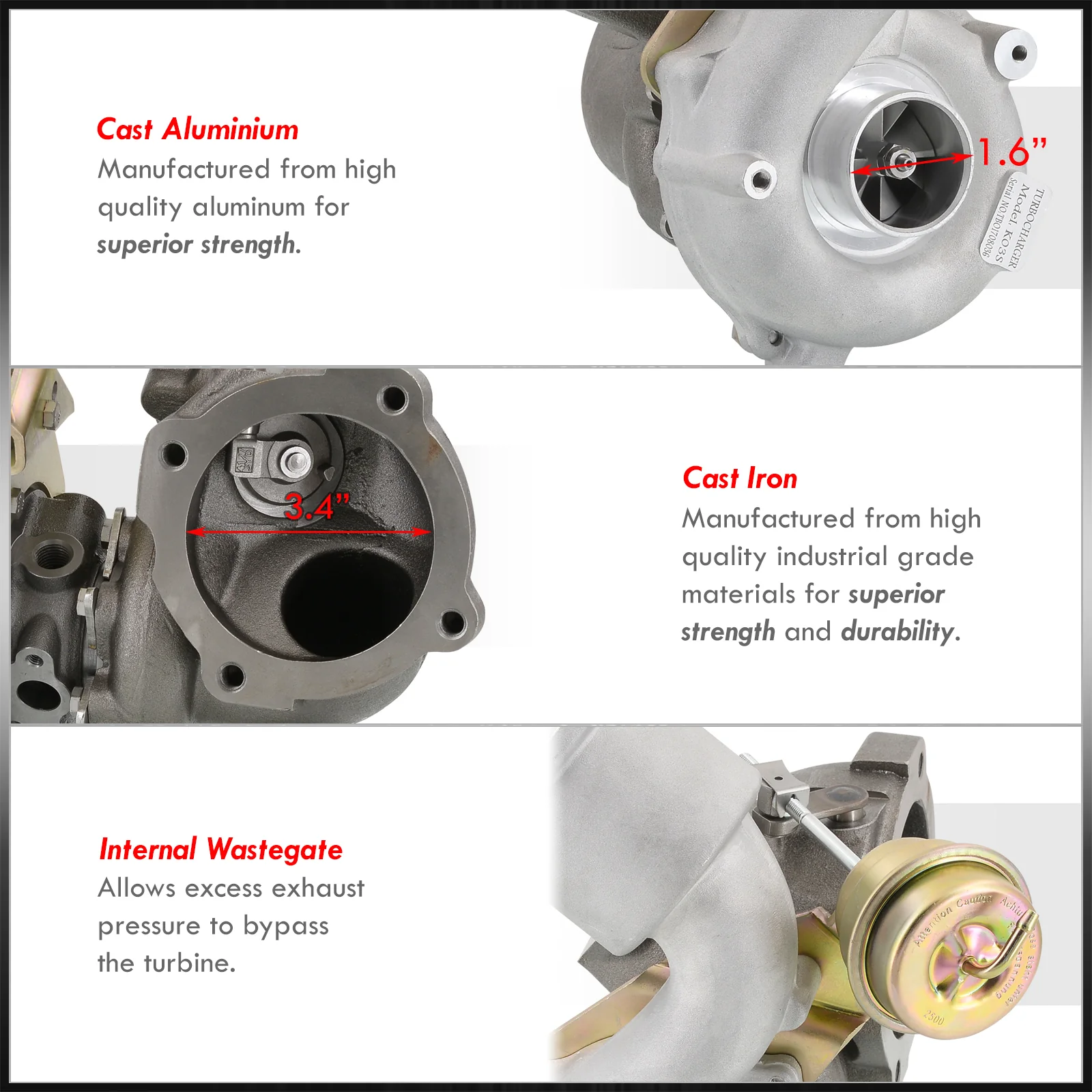

• Manufactured from high quality cast aluminum & cast iron for superior strength and durability.
• Included internal wastegate will be set around 0.8 BAR / ~12 PSI (can also be modified to use external wastegate).
• SPECIFICATIONS (Estimated):
  • Exhaust Manifold Flange:
    • Standard 3-Bolt
  • Downpipe Exhaust Flange:
    • K03 5-Bolt
  • Intake:
    • Inlet: 1.60" / 40.64mm
    • Outlet: 1.60" / 40.64mm
  • Compressor:
    • Trim: 2.36" / 60mm
    • A/R: 0.49 A/R
    • Inducer: 1.41" / 35.90mm
    • Exducer: 1.96" / 49.89mm
  • Turbine:
    • Trim: 2.20" / 56mm
    • A/R: 0.70 A/R
    • Inducer: 1.76" / 44.90mm
    • Exducer: 1.60" / 40.65mm
• * Doesn't include hardware such as gaskets, bolts, & nuts. Additional modifications and/or items are required to complete installation. *
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement For:

• 1999-2005 Audi TT / Quattro (MK1) 1.8T
• 1999-2005 Volkswagen Beetle 1.8T
• 2000-2005 Volkswagen Golf GTI (MK4) 1.8T
• 2000-2005 Volkswagen Jetta / Bora (MK4) 1.8T

** Fits turbocharged models with 1.8T engines only. **
