Universal Oil Filter Cooler Sandwich Gauge Sensor Plate Adapter Blue
100% Brand New Items, Never Used Or Installed

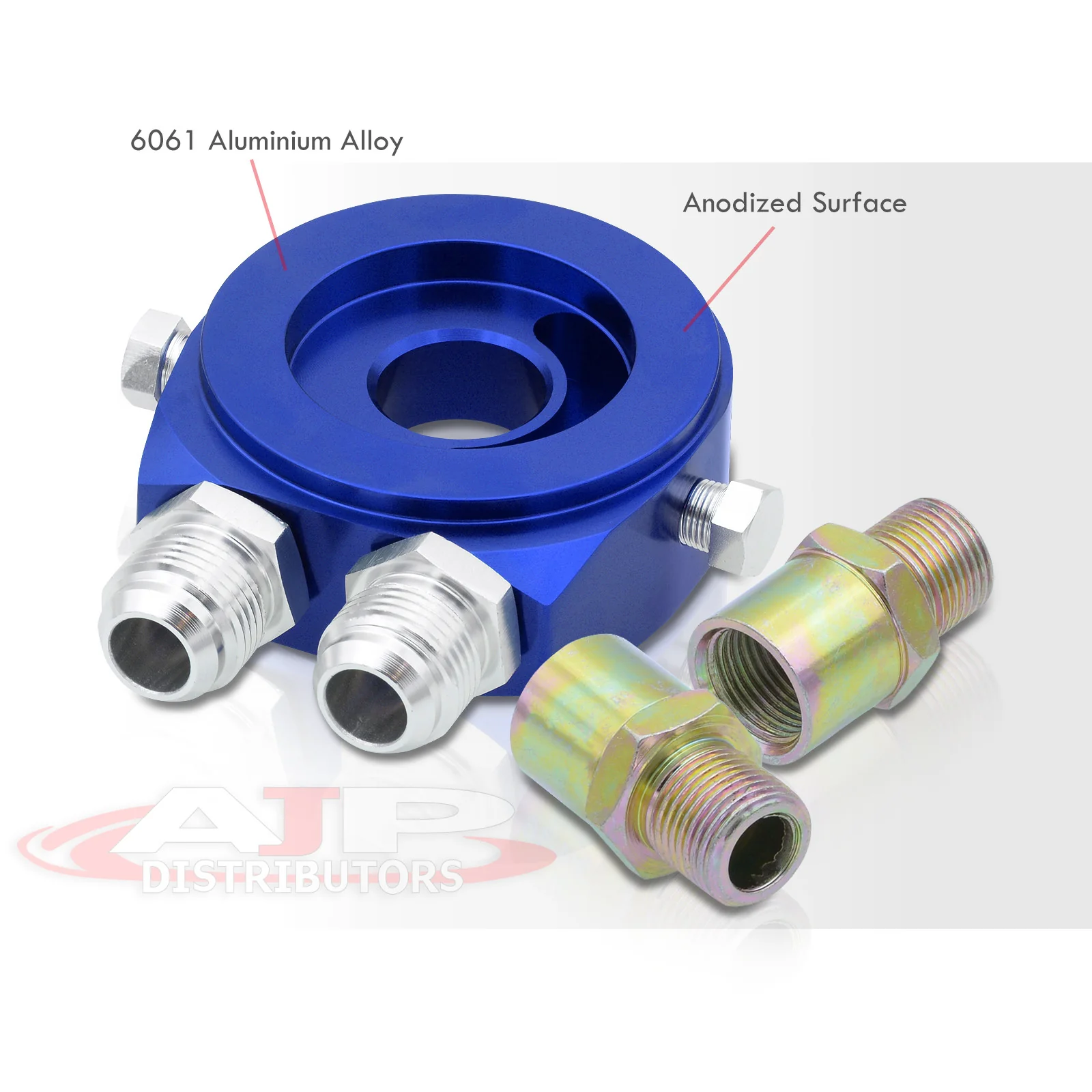

Universal Aluminum Oil Filter / Cooler Relocation Adapter Plate
CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
Mounts Between The Block and Oil Filter; Provides In and Out Ports With Connections For 10AN Fittings
O-Rings: 2 3/4", Supporting Many Different Types Of Oil Filters and Engine Blocks
Center Adapter: M20 x 1.5 and 3/4 x 16 UNF Thread; Supports Oil Filters That Has M20 Thread and M20 Block Fitting
10 AN Ports: Running Oil For Turbo / Oil Cooling
1/8 NPT Ports: Running Sensors For Gauges, Sensors, Or Other Accessories

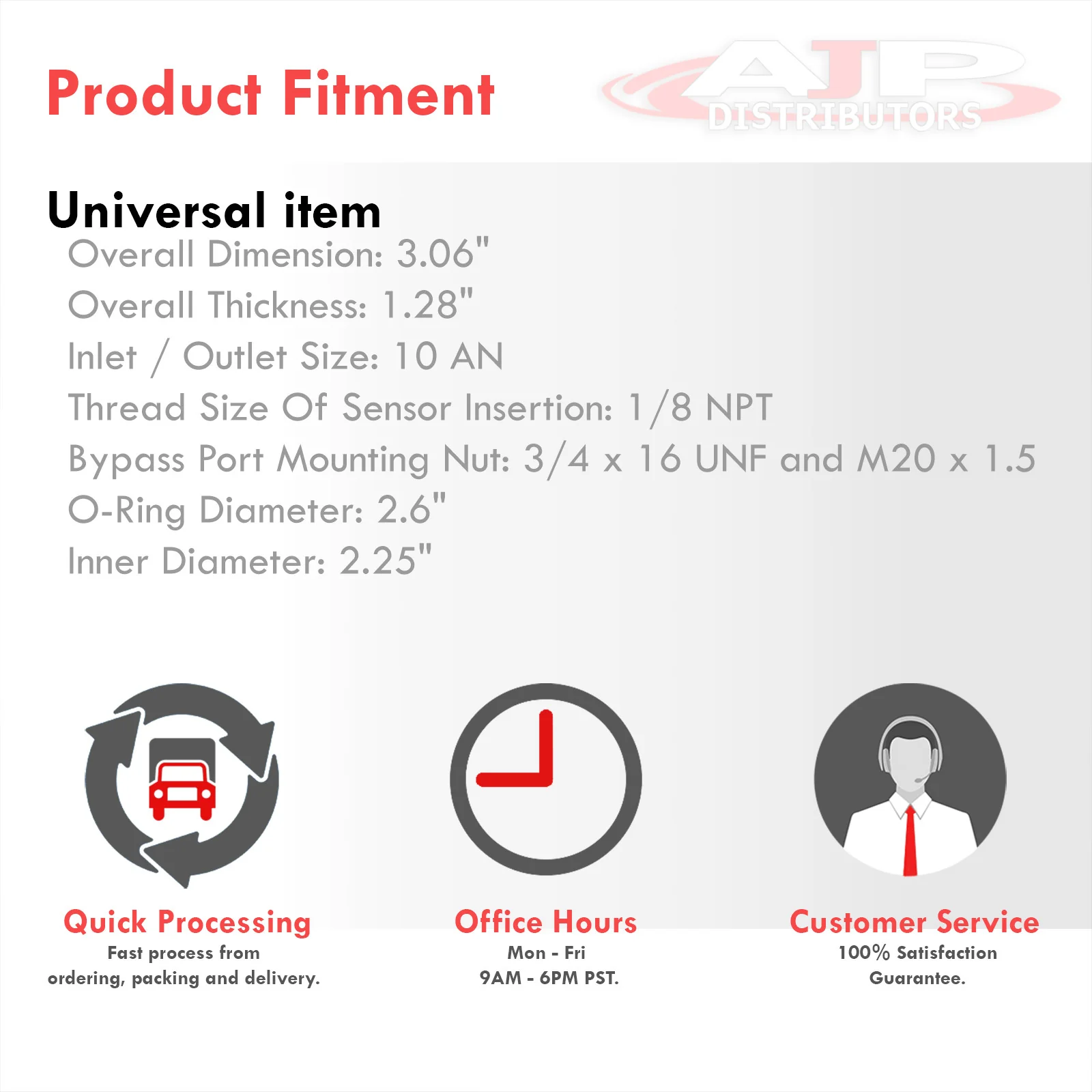

Overall Dimension: 3.06"
Overall Thickness: 1.28"
Inlet / Outlet Size: 10 AN
Thread Size Of Sensor Insertion: 1/8 NPT
Bypass Port Mounting Nut: 3/4 x 16 UNF and M20 x 1.5
O-Ring Diameter: 2.6"
Inner Diameter: 2.25"
Package Includes: 1x Oil Filter Sandwich Adapter | 1x M20 x 1.5 | 1x 3/4 x 16 UNF | 2x 10AN Fitting | 2x 1/8 NPT Plug
No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation
FITMENT
Universal - M20 x 1.5 and 3/4-16 UNF Threading Engine Blocks and Oil Filters Only
(Made For Most Japanese Vehicles - Please Check Your Vehicle's Application) $5.95Original: $16.99
